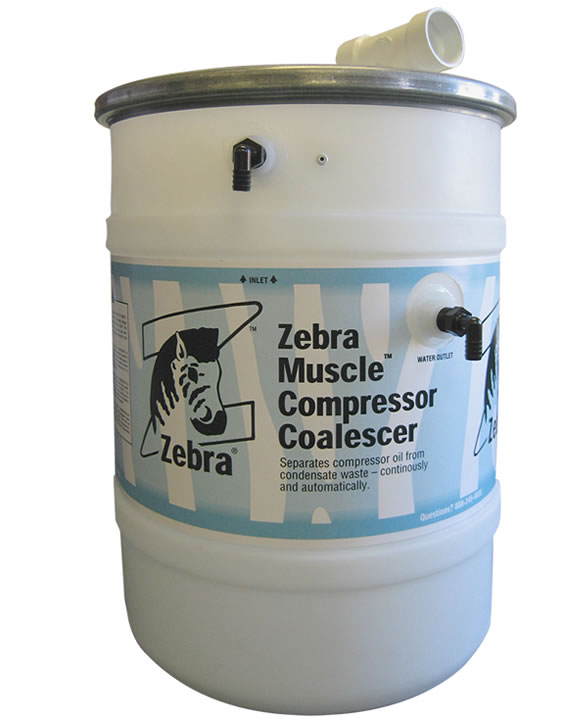

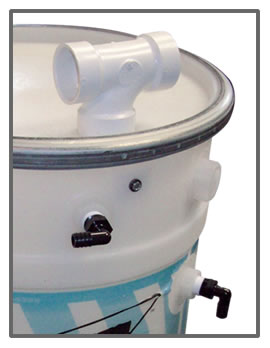

- Condensate from compressor input.
- Clean water discharge.
- Waste oil discharge.

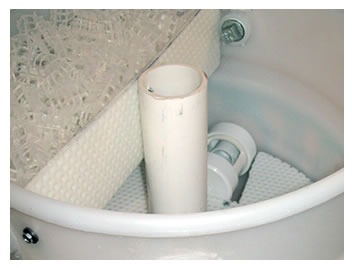

- Coalescing media, interior.
|
| A. |
Condensate is injected |
| B. |
Compressor discharge flows through diffusing chamber |
| C. |
De-watered air automatically exits via vent |
| D. |
Water and oils collect |
| E. |
De-oiled water forced down and through media to remove trace oils, then through tube to exit |
| F. |
De-oiled water automatic discharge |
| G. |
Oil floats to surface |
| H. |
Manual oil discharge |
|
